  ÀüÀÚºÎÇ° > °èÃø±â > ¿À½Ç·Î½ºÄÚÇÁ > 1ch 2.8inch Oscilloscope for Study(DSO201)
1ch 2.8inch Oscilloscope for Study(DSO201)
ÆǸŰ¡°Ý : 154,000¿ø
ÃÑ »óÇ° ±Ý¾× 0 ¿ø
»óÇ°¸í : 1ch 2.8inch Oscilloscope for Study(DSO201)



¡ß Description

ARM DSO Nano DS0201 Pocket-Sized Digital Oscilloscope With 2.8 \ LCD



DSO nano is a pocket size digital storage oscilloscope fulfills basic electronic engineering requirements. It is base on ARM Cortex-M3 compatible 32 bit platform, equipped with 320*240 color display, Mini SD card capability, USB connection, and chargeable batteries. Weighs only 60g.



¡ß Features

Display                      2.8 Color TFT LCD

Display                      Resolution 320¡¿240

Display                      Color 65K

Analog bandwidth           0 - 1MHz

Max sample rate            1Msps 12Bits

Sample memory depth      4096 Point

Horizontal sensitivity       1uS/Div~10S/Div (1-2-5 Step)

Horizontal position         adjustable with indicator

Vertical sensitivity          10mV/Div~10V/Div (with ¡¿1 probe)

                              0.5V/Div~100V/Div (with ¡¿10 probe)

Vertical position             adjustable with indicator

Input impedance            >500K

Max input voltage          80Vpp (by ¡¿1 probe)

Coupling                    DC

Trig modes                  Auto, Norma, Single, None and Scan

Functionalities              Automatic measurement frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage

                             Precise vertical measurement with markers

                             Precise horizontal measurement with markers

                             Rising/falling edge trigger

                             Trig level adjustable with indicator

                             Trig sensitivity adjustable with indicator

                             Hold/run feature

Test signal                  Built-in 10Hz~1MHz (1-2-5 Step)

Waveform storage         SD card

PC connection via USB   as SD card reader

Upgrade                     by boot loader via USB

Power supply               3.7V Chargeable Lithium battery / USB

Dimension (w/o probe)    105mm X 53mm X 8mm



¡ß Setup your SD card for first time usage

1. Format SD card with FAT16

2. Download DS0201 Manual

3. Decompress it, and copy to the root folder of SD card.



¡ß Packing Includes

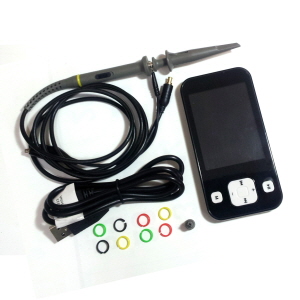

1 X ARM Digital Oscilloscope (Fig.1) (3.7v cell inside)

1 X Oscilloprobe

1 X Mini USB Cable

1 X Bag
